903採血樣紙主要材質為100%純度的棉質纖維，其生產及製造極為嚴謹並符合美國FDA法規之要求，在美國是FDA登記核准之第二級醫療器械產品(class
II medical device)。903採血樣紙之生產及印製也已通過歐盟對體外檢驗試劑指令(European
IVD Directive)之要求，獲得CE標示。
FTA® Technology - Collect,
Transport, Archive and Isolate
Nucleic Acids
產品簡介
．
FTA
Cards utilize patented Whatman
FTA Technology that simplifies
the handling and processing of
nucleic acids. FTA Cards contain
chemicals that lyse cells, denature
proteins and protect nucleic acids
from nucleases, oxidation and
UV damage. FTA Cards rapidly inactivate
organisms, including blood-borne
pathogens, and prevent the growth
of bacteria and other microorganisms.
產品特色
．
Capture
nucleic acid in one easy step.
．
Captured
nucleic acid is ready for downstream
applications in less than 30 minutes.
．
Nucleic acids
collected on FTA Cards are stable
for years at room temperature.
．
FTA Cards
are stored at room temperature
before and after sample application,
reducing the need for laboratory
freezers.
．
Suitable
for virtually any cell type .
．
Indicating
FTA Cards change colour upon sample
application to facilitate handling
of colourless samples.
．
FTA Cards
are available in a variety of
configurations to meet application
requirements.
Ordering Information - Whatman
FTA® Technology - Nucleic
Acid Collection, Storage and Purification
Catalogue Number
Description
Cards/Pack
WB1200
FTA Kit 1
25
WB120061
FTA Starter
Pack
N/A
WB120305
FTA Classic Card
25
WB120205
FTA Classic
Card
100
WB120306
Indicating FTA Classic Card
25
WB120206
Indicating
FTA Classic Card
100
WB120355
FTA Mini Card
25
WB120055
FTA Mini
Card
100
WB120356
Indicating FTA Mini Card
25
WB120056
Indicating
FTA Mini Card
100
WB120310
FTA Micro Card
25
WB120210
FTA Micro
Card
100
WB120311
Indicating FTA Micro Card
25
WB120211
Indicating
FTA Micro Card
100
WB120308
FTA Gene Card
25
WB120208
FTA Gene
Card
100
WB120365
PlantSaver FTA Card
25
WB120065
PlantSaver
FTA Card
100
WB120068
FTA Plant Kit 2
20
1 Includes:
25 FTA Micro Cards, 2 vials purification
reagent (25mL), 2 x Uni-Core Punches
with cutting mat, instructions.
2 Includes:
20 FTA PlantSaver cards (WB120365),
1 x Uni-Core Punch 2.0mm and cutting
mat, 2 x 25mL FTA Purification
reagent, one pair of nitrile gloves
and one cutting mat and round
bottom test tube for sample application.
FTA
Elute Cards utilize patented Whatman
FTA Technology that simplifies
the handling and processing of
nucleic acids. DNA can be extracted
in an easy step, providing you
with DNA for your amplification
needs. The FTA Elute matrix is
chemically treated with proprietary
reagents that lyse cells upon
contact causing the release of
nucleic acids. DNA is recovered
from the FTA Elute matrix through
a simplified elution process using
water and heat. Inhibitory components,
such as hemoglobin, are retained
on the FTA Elute matrix.
產品特色
．
Capture
nucleic acid in one easy step
．
Captured
nucleic acid is easily released
for multiple downstream applications
in less than 30 minutes
．
Sample processing
requires a simple water elution
procedure to isolate DNA eliminating
the cost of using a purification
kit
．
DNA collected
on FTA Elute Cards are stable
for years at room temperature
．
FTA Elute
Cards are stored at room temperature
before and after sample application,
reducing the need for laboratory
freezers
．
FTA Elute
rapidly inactivates organisms
including blood borne pathogens
and eliminates the risk of contamination
for the individuals handling the
sample
．
FTA Elute
Cards are available in a variety
of configurations to meet application
requirements

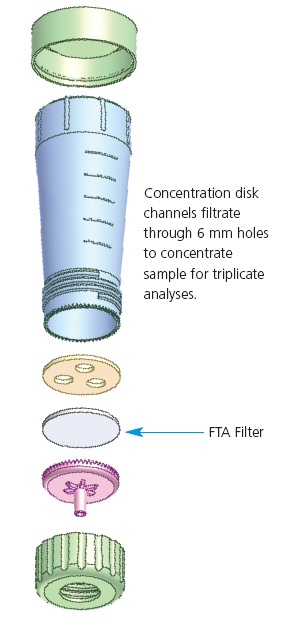

FTA Concentrator-PS
- Parasite DNA Purification
and Concentration Solution
產品簡介
．
The
FTA Concentrator–PS provides a
solution to a pressing need in
environmental and food safety
testing. It combines concentration
and purification into one step,
speeding time to detection and
sensitivity is enhanced with the
FTA technology incorporated in
the unit. Developing methods to
streamline and improve the accuracy
of food borne pathogen testing
is critical to preserving the
health and safety of the public.
Many of the pathogens associated
with contaminated water are parasitic
organisms. The FTA Concentrator–PS
(PS stands for parasite) is intended
to quickly concentrate and prepare
DNA from parasites or oocysts
for PCR* analysis.
產品特色
．
Speeds
time to detection.
Combines concentration and purification
in one step to speed results.
．
Time-
and cost-effective.
Eliminates DNA template preparation
steps.
．
Increases
sensitivity.
FTA technology supports detection
of small numbers of organisms
．
Safe.
Infectious pathogens are inactivated
after coming in contact with FTA
coated matrices.
．
Easy-to-Use.
No special skills required.
產品應用領域
．
DNA
purification from Cryptosporidium
oocysts and Cyclospora
in food or water sources.
FTA®
Technology in 96 Well
Format for High Throughput
Applications - Designed
for the collection,
long-term storage
and purification of
plasmid and BAC DNA
from bacterial clones
in a 96 well format.
產品特色
Prepare
BAC and Plasmid DNA with Amazing
Ease
．
Apply
5 µL bacterial culture,
re-suspended colony or glycerol
stock. Cells are lysed and plasmid
or BAC DNA is stabilized for long-term
storage or immediate processing
．
Bacteriophages
are inactivated
．
DNA is easily
accessible for downstream applications
．
Store
up to 96 samples on each car
Store
Sample DNA for Years at Room Temperature
．
Plasmid
DNA stored on CloneSaver Cards
is stable at room temperature
for at least 4 years...and counting.
產品應用領域
．
DNA
is Easily Accessible for Downstream
Application
．
Transformation
Plasmid DNA can be eluted
or used directly on a punch to
transform bacteria either by electroporation
or heat-shock methods.
．
PCR Immobilized plasmid DNA on
a CloneSaver Card punch can be
used directly in a PCR. The PCR
products remain in solution, do
not bind to the punch and are
easily recoverable. Plasmid DNA
can also be eluted for PCR or
other studies.
．
Sequencing
Plasmid DNA eluted from a
CloneSaver punch can be amplified
by rolling circle amplification,
such as Amersham Bioscience's
TempliPhi™ and then sequenced
without the need for culture re-growth
and plasmid purification.

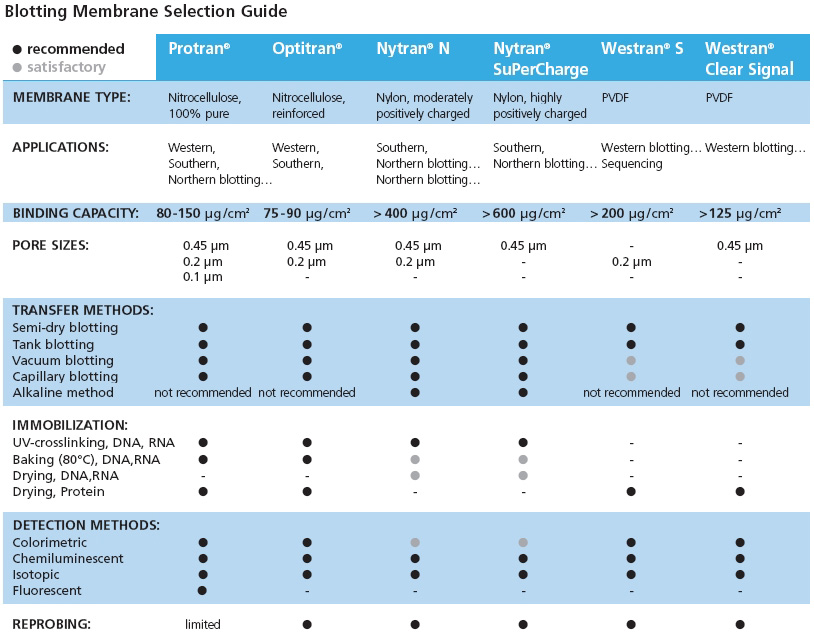

Whatman
offers an extensive line
of premium transfer membranes
used in a wide range of
application.
．
Protran
best and easiest blocking
of unspecific binding compared
to all blotting membranes
superior for chemiluminescence
detection using horseradish
peroxidase based systems
．
Optitran®
combines excellent properties
of nitrocellulose with reinforcing
fleece
．
Nytran
N easier
to block than highly positively
charged Nylon & available
in two pore sizes
3MM
Chr paper -
the world’s most widely
used blotting paper. This
acceptance and usage reflect
the high quality, purity
and consistency that are
relied upon by researchers
doing Southern, Northern
and Western transfers. 3MM
Chr paper is now available
in the most widely used
sizes. A medium thickness
paper (0.34 mm) used extensively
for blotting in electrophoresis
for lifting of sequencing
gels.
．
GB004
A thick gel blotting paper
(1.0 mm), used for wicking
purposes only. Provides
higher absorbency and more
consistent wicking than
paper towels. Recommended
for applications where fewer
layers of gel blotting paper
must still ensure a high
capacity. Fewer layers of
blotting paper reduce the
risk of trapping air bubbles.
Recommended for capillary
blotting of nucleic acids.
．
GB005
An extra-thick (1.2 mm ), highly absorbent paper recommended for applications where fewer layers of blotting paper must siill ensure a high capacity. Recommended for semi-dry blotting of proteins.
．
17
Chr
A thick (0.92 mm) and highly
absorbent paper.
．
31
ET
An extremely fast and thick paper (0.5 mm) with a fairly soft surface.
Features and Benefits
．
Pure
cellulose produced entirely from
the highest quality cotton linters
with no additives of any kind.
Ensures that no contamination
will occur during the transfer
steps
．
Manufactured
and tested specifically for chromatographic
techniques. This ensures the wicking
capability and uniformity of capillary
action that is important in obtaining
clean and even transfers during
blotting
．
Whatman
3MM Chr is considered the industry
standard for blotting procedures
．
Convenient
sizes available in sheets precisely
cut to the most popular gel and
transfer membrane sizes. Allows
"out-of-the-box" usage
and eliminates sheet-to-sheet
variations
Diagnostic
Components - Having the expertise
and manufacturing capability
to customise fibrous products
to meet very specific requirements,
Whatman has an established reputation
for supplying key components
for a wide range of applications.
For today's
diagnostic device manufacturers,
time-to-market is more critical
than ever. They seek cost-efficient
business partnerships that yield
consistent product performance
and quality - at increasingly
aggressive rates of development.
In essence, they require experienced
single-source suppliers with
extensive product lines that
address the full spectrum of
diagnostic applications. That
is why so many diagnostic companies
partner with Whatman.
We offer
a comprehensive family of high-quality,
solid-phase media - from sample
wicks, blood separators and
conjugate release pads to absorbent
sinks, sample collection/transport
materials and dipsticks.
In addition,
our in-depth line of nitrocellulose
membranes and our proprietary
FUSION (single layer matrix)
technology provide proven performance
for lateral flow assays.
What's more,
our pioneering work in emerging
applications - including track-etched
membrane and molecular diagnostic
technologies - helps companies
remain on the forefront of breakthrough
diagnostic solutions.
By combining
the highest quality standardized
solutions with unsurpassed technical
expertise and support, we enable
diagnostic companies to optimize
their product offerings quickly
and cost-effectively. We thereby
accelerate a company's time-to-market
and maximize their competitive
advantage.
新生兒篩檢
